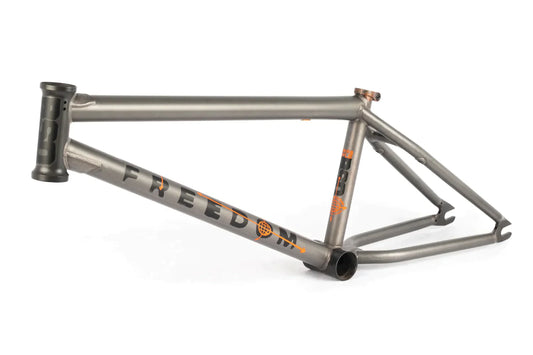

BSD FREEDOM FRAME FLAT RAW

Size: 21.1"
21.1"
Color: flat raw
flat raw
  • Available: instock
  • Vendor: BSD
  • Type: bmx
Regular price €430,00 EUR
Sale price

Guarantee Safe Checkout

Estimate delivery times: 4-14 days (Lithuania) , 12-26 days (International). In case of order delay, the client will be informed.

Return within 14 days of purchase.

BSD FREEDOM FRAME FLAT RAW SeasideBMX
BSD FREEDOM FRAME FLAT RAW
Regular price €430,00 EUR
Sale price
Kriss Kyle is the type of rider who likes to ride everything, bowls, street, dirt, the lot. His signature Freedom frame is designed to perform well on all terrain, this frame combines the stability of a low 11.5″ BB, the responsiveness of a 75° headangle and the versatility of a short rear end. To create a stiffer rear triangle we’ve utilized an invest cast wishbone and invest cast seatstay bridge, great for sideways landings!!

Tech specs
Toptube lengths 20.2 / 20.5 / 20.8 / 21.1 / 21.5
Headtube angle 75°
Headtube length 117mm
Seattube angle 69.5°
Rear end length 13.2″ – 13.625″ – note the 21.5″ frame has a longer rear (13.4″ – 13.825″)
BB Height 11.5″
Standover height 9″
Weight 5lbs
Brake mounts removable – brake kit available separately
Tubing Sanko Japanese seamless 4130 CrMo / triple butted
Headtube Heat treated 4130 CrMo / CNC / Offset thickness
Bottom Bracket Heat treated 4130 CrMo / CNC machined
Chainstay Wishbone Heat treated 4130 CrMo / Invest cast
Dropouts Heat treated 4130 CrMo / Invest cast
Seatclamp Heat treated 4130 CrMo / Invest cast
Colours CLASSIC RED / LITE TEAL / KAWASAKI GREEN / FLAT RAW / SANDSTORM / MILITARY GREEN / FLAT BLACK

INVEST CAST SEATCLAMP

The invest cast seatclamp is brazed onto the frame so there’s no need for a separate clamp. Also the slot cut beneath the seatclamp gives more clamping power less torque on the bolt. Note the new seatstay bridge too.

INVEST CAST DROPOUTS

Because the dropout is cast as one piece it’s much stronger than a plate welded to a tube. 7mm thick to provide good support for your axle, and the small shape has been designed for grinding meaning there’s no overhang to catch on ledges or rails, also the dropout is heat treated before welding making it extra tough. And finally there;s an integrated chain tensioner bolts inside.

INVEST CAST WISHBONE

We’ve used a new heat treated invest cast wishbone on the Freedom frame. This combined with the new seatstay bridge offers a stronger and stiffer rear end, especially good for sideways landings.

Dimensions 95 × 33 × 16 cm
Color
raw

TopTube
21.1'
